5R GPS Tracker
LKR 12,000

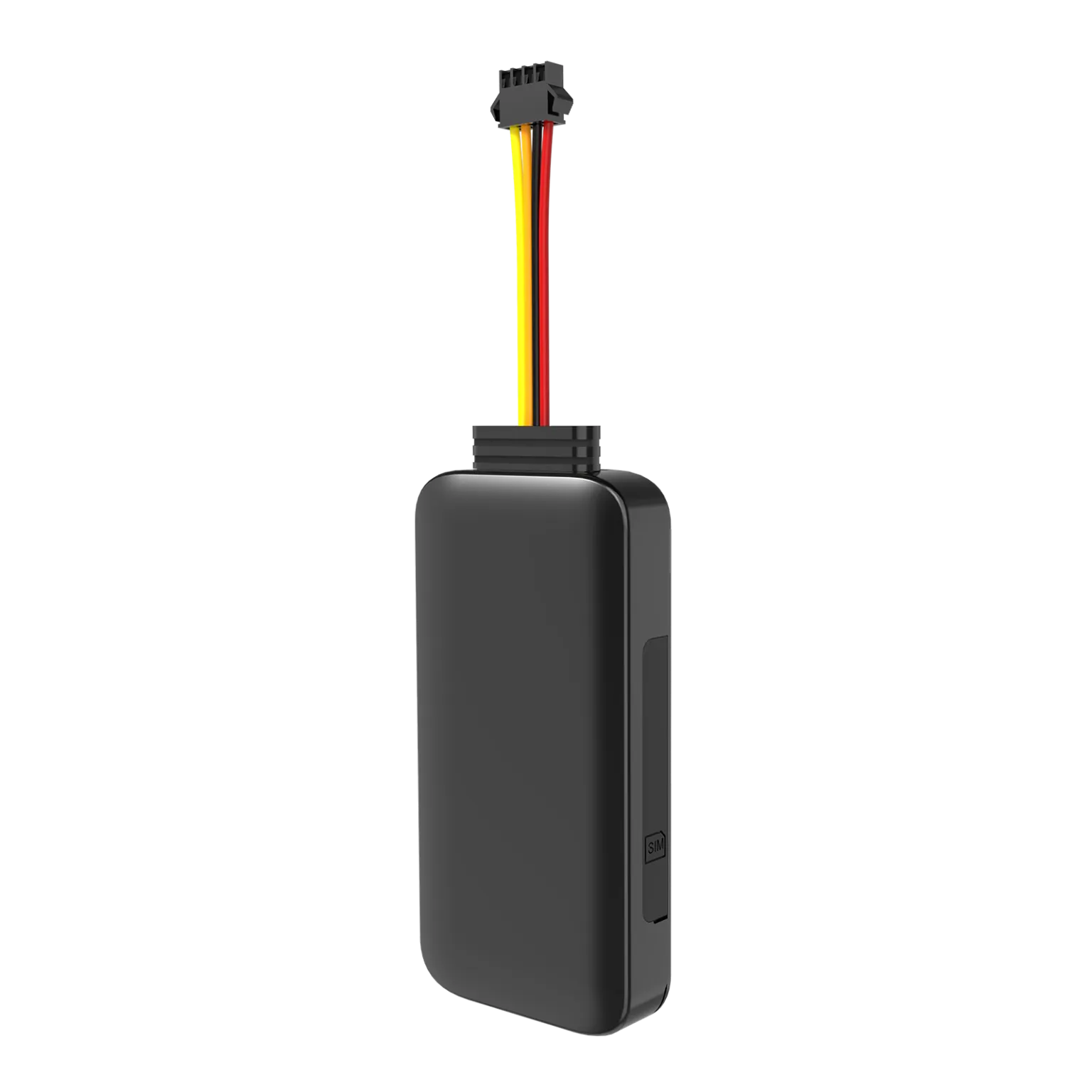

VT05R is a vehicle GPS tracker with lP65 water-resistance rating and can be installed into cars, motorcycles. It allows functions such as acc detection, cut-off fuel and electricity, vibration detect, geo-fence, over-speed warning, historical data record. The device can work well in extreme environments. With detailed factory inspection, the device is with long durability and high reliability.
Key Specifications
- GPS+BDS Dual Positioning
- Remote Engine Cut-off
- Historical Route Playback
- Vibration & Overspeed Alerts
- Works in extreme environments
Features
Enhanced GPS Performance
GPS+BDS Dual Positioning
Offline Data Storage
Customizable Alerts
Hidden Installation
Geofencing Capabilities
Functions
Real-Time Location Monitoring
Engine Status Monitoring
Historical Route Playbook
Speed Monitoring
Idle Time Reporting
Remote Engine Cut-off
Technical Specifications
Materials
ABS+PC (Fire resistance materials)
Sim Card
4FF Nano (SIM card slot)
Working Voltage
9-90V
Battery Capacity
55mAh
Working Current
30mA
Working Temperature
-20℃ to +70℃
Standby Current
3mA
Working Humidity
5% to 95%
Dimension
74x34x14 mM
Weight
29 g
Technical Parameters
Positioning System
GPS+BDS
Cellular Frequency
Quad-band 850/900/1800/1900 MHz
Gps Frequency
L1
Cellular Connectivity
GSM
Gps Sensitivity
-165dBm
Acquisition Sensitivity
-144dBm
Ttff Open Sky
Cold Start≤38s, Hot Start≤2s
Location Accuracy
≤ 5m
Led Indicator
Blue-GNSS, Green-Cellular, Red-Power
Gps Antenna
Ceramic Antenna
Cellular Antenna
FPC Antenna
