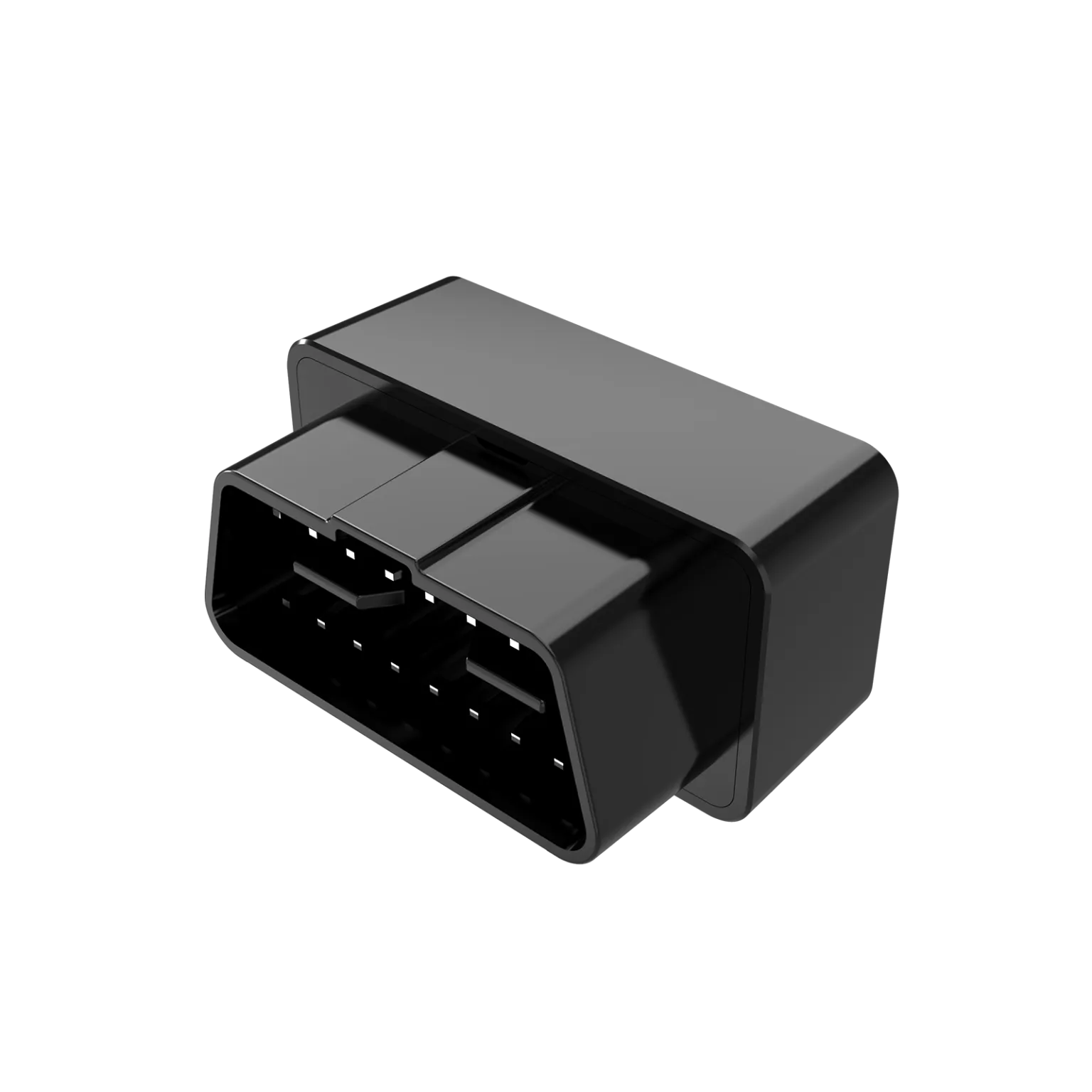

OBD Plug-and-Play Tracker
LKR 9,000
OBD6F is a simple plug and play OBD GPS tracker. By using it, user could see the speed of the vehicle, stops with time and duration as well a history of everywhere the vehicle has been over time. Smart and compact design makes it can be easily installed.
Key Specifications
- Plug-and-play installation
- Vehicle speed and stops history
- Offline Data Storage
- Smart compact design
- Supports GPS+BDS
Features
Compact and Lightweight
GPS+BDS Dual Positioning
Offline Data Storage
Plug-and-Play Installation
Functions
Real-Time Location Monitoring
Tamper Alert When Removed
Historical Route Playbook
Speed Monitoring
Idle Time Monitoring
Remote Configuration
Technical Specifications
Materials
ABS+PC (Fire resistance materials)
Sim Card
3FF Micro (SIM card slot)
Working Voltage
9-90V (Vehicle Power Supply)
Battery Capacity
55mAh
Working Current
25mA
Working Temperature
-25℃ to +75℃
Standby Current
3.1mA
Working Humidity
5% to 95%
Dimension
47×25.4×30 mM
Weight
33.5g
Technical Parameters
Positioning System
GPS+BDS
Cellular Frequency
Quad-band 850/900/1800/1900 MHz, LTE-TDD: B1,B3,B5,B8, LTE-FDD: B34,B39,B40,B41
Gps Frequency
L1
Cellular Connectivity
GSM / LTE Cat.1
Gps Sensitivity
-160dBm
Acquisition Sensitivity
-147dBm
Ttff Open Sky
Cold Start≤35s, Hot Start≤1s
Location Accuracy
≤ 5m
Led Indicator
Blue-GNSS, Green-Cellular, Red-Power
Gps Antenna
Ceramic Antenna
Cellular Antenna
FPC Antenna
