5R GPS Tracker
LKR 14,000

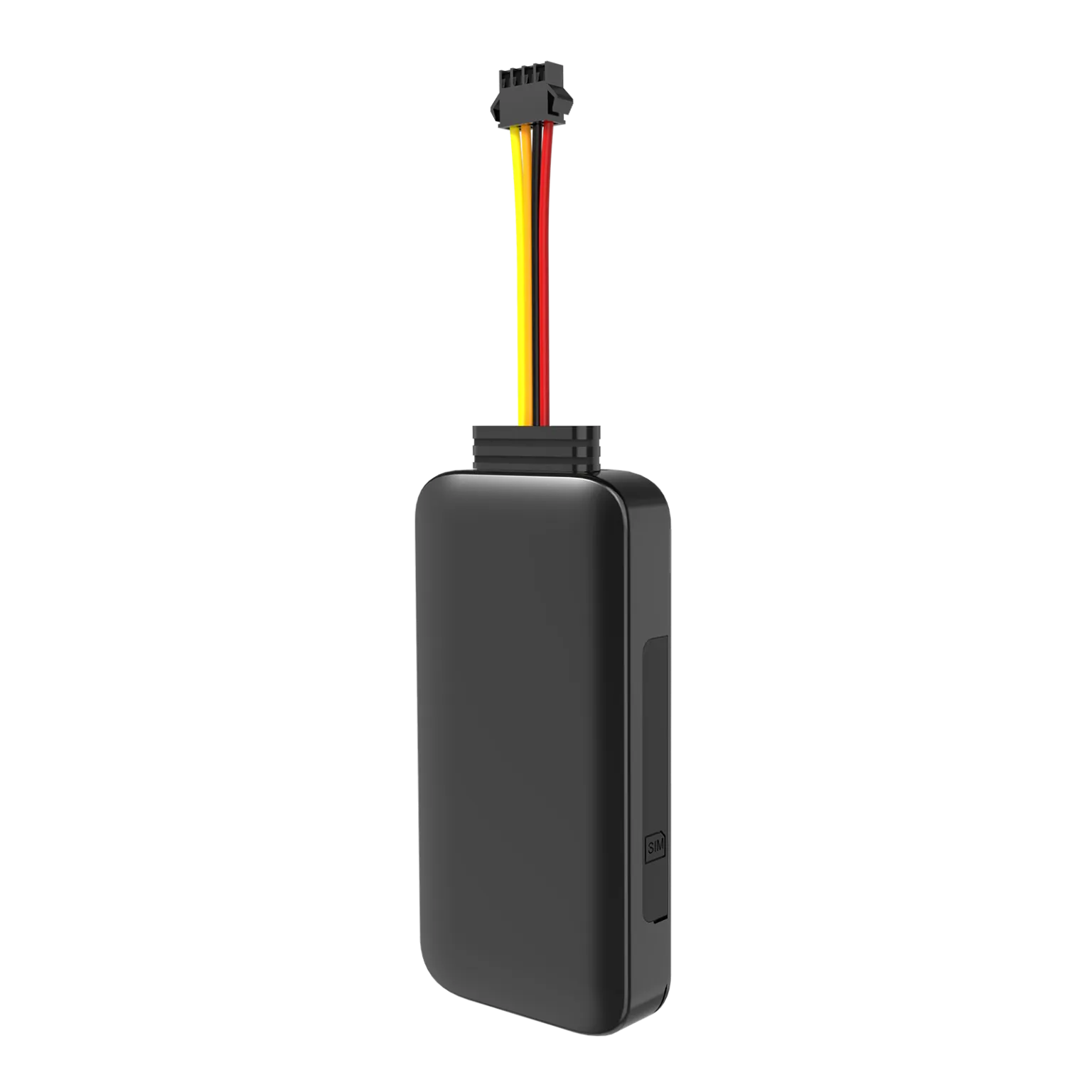

VT05R is a vehicle GPS tracker with IP65 water-resistance rating and can be installed into cars, motorcycles. It allows functions such as acc detection, cut-off fuel and electricity, vibration detect, geo-fence, over-speed warning, historical data record. The device can work well in extreme environments. With detailed factory inspection, the device is with long durability and high reliability.
Key Specifications
- GPS+BDS Dual Positioning
- Remote Engine Cut-off
- Historical Route Playback
- Vibration & Overspeed Alerts
- Works in extreme environments
Product Capabilities
Advanced features and core functions for professional fleet management
Advanced Features
Enhanced GPS Performance
GPS+BDS Dual Positioning
Offline Data Storage
Custom Alerts
Hidden Installation
Geofences
Core Functions
Real-Time Location Monitoring
Engine Status Monitoring
Historical Route Playback
Speed Monitoring
Idle Time Reporting
Remote Engine Cut-off
Technical Details
Specifications
MaterialsABS+PC (Fire resistance materials)
Sim Card4FF Nano (SIM card slot)
Working Voltage9-90V
Battery Capacity55mAh
Working Current30mA
Working Temperature-20℃ to +70℃
Standby Current3mA
Working Humidity5% to 95%
Dimension74x34x14 mM
Weight29 g
Parameters
Positioning SystemGPS+BDS
Cellular FrequencyQuad-band 850/900/1800/1900 MHz
Gps FrequencyL1
Cellular ConnectivityGSM
Gps Sensitivity-165dBm
Acquisition Sensitivity-144dBm
Ttff Open SkyCold Start≤38s, Hot Start≤2s
Location Accuracy≤ 5m
Led IndicatorBlue-GNSS, Green-Cellular, Red-Power
Gps AntennaCeramic Antenna
Cellular AntennaFPC Antenna
