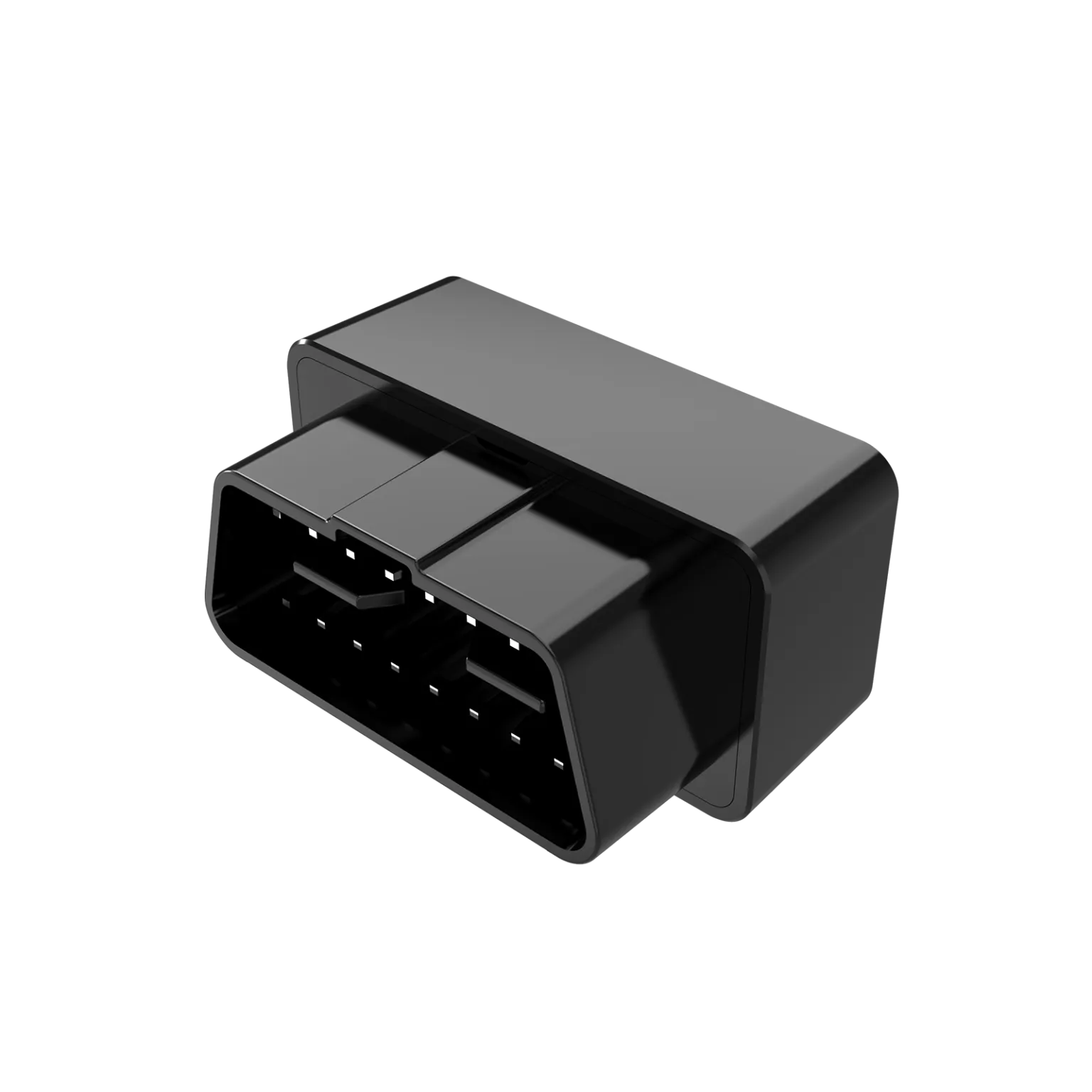

OBD GPS Tracker
LKR 14,500
OBD6F is a simple plug and play OBD GPS tracker. By using it, user could see the speed of the vehicle, stops with time and duration as well a history of everywhere the vehicle has been over time. Smart and compact design makes it can be easily installed.
Key Specifications
- Plug-and-play installation
- Vehicle speed and stops history
- Offline Data Storage
- Smart compact design
- Supports GPS+BDS
Product Capabilities
Advanced features and core functions for professional fleet management
Advanced Features
Compact and Lightweight
GPS+BDS Dual Positioning
Offline Data Storage
Plug-and-Play Installation
Core Functions
Real-Time Location Monitoring
Tamper Alert When Removed
Historical Route Playback
Speed Monitoring
Idle Time Monitoring
Remote Configuration
Technical Details
Specifications
MaterialsABS+PC (Fire resistance materials)
Sim Card3FF Micro (SIM card slot)
Working Voltage9-90V (Vehicle Power Supply)
Battery Capacity55mAh
Working Current25mA
Working Temperature-25℃ to +75℃
Standby Current3.1mA
Working Humidity5% to 95%
Dimension47×25.4×30 mM
Weight33.5g
Parameters
Positioning SystemGPS+BDS
Cellular FrequencyQuad-band 850/900/1800/1900 MHz, LTE-TDD: B1,B3,B5,B8, LTE-FDD: B34,B39,B40,B41
Gps FrequencyL1
Cellular ConnectivityGSM / LTE Cat.1
Gps Sensitivity-160dBm
Acquisition Sensitivity-147dBm
Ttff Open SkyCold Start≤35s, Hot Start≤1s
Location Accuracy≤ 5m
Led IndicatorBlue-GNSS, Green-Cellular, Red-Power
Gps AntennaCeramic Antenna
Cellular AntennaFPC Antenna
